Description

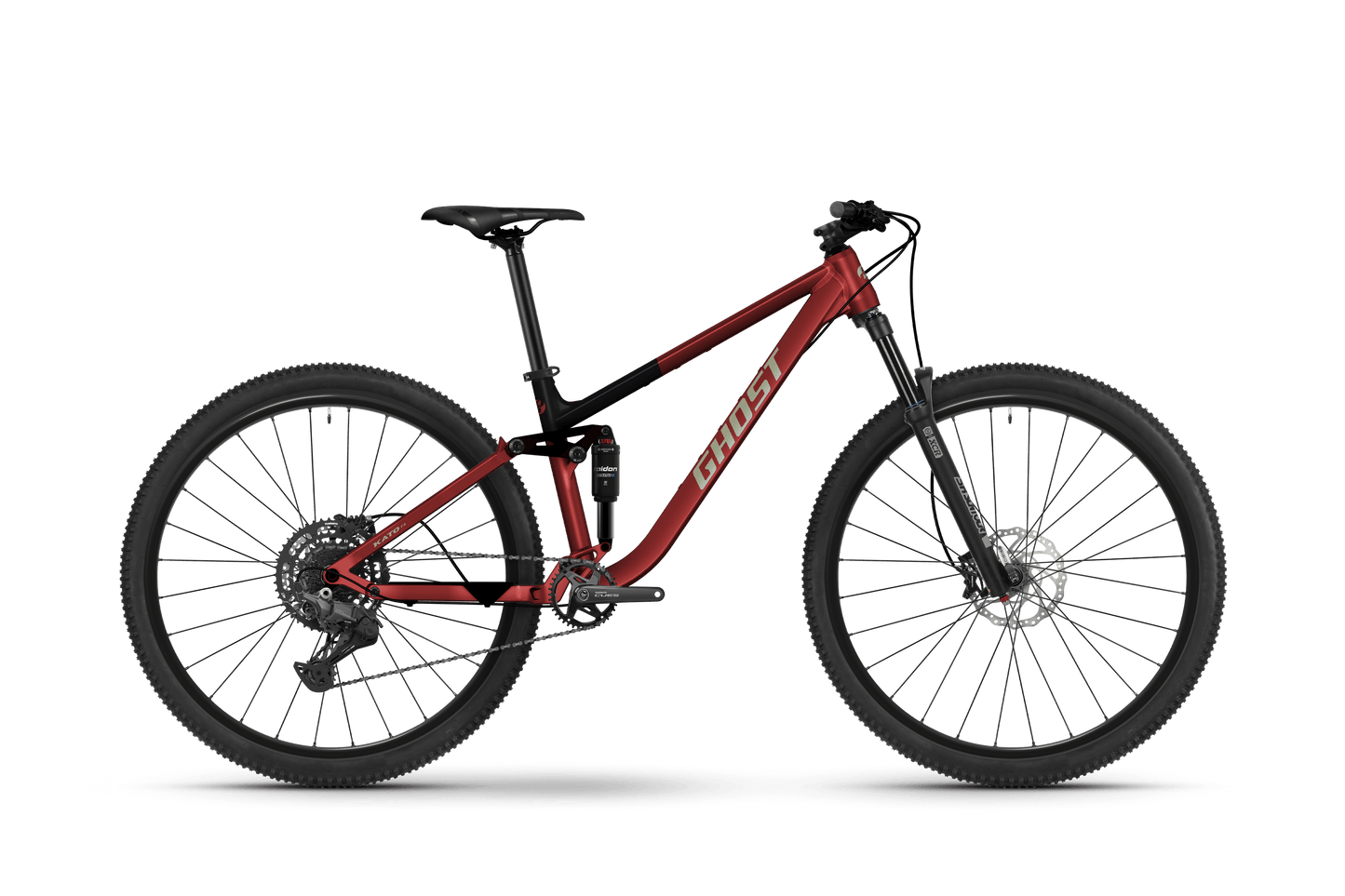

mountainbike ghost kato 1 GHOST KATO FS 2026 – I Cycle LtdDescription The Ghost Kato FS is built for riders who crave full suspension freedom. With a lightweight aluminium frame, efficient 4 bar rear suspension platform, it smooths out rough trails and powers through the climbs with ease. For control, comfort and fun on every ride choose the Kato FS. Alloy Frame Suntour XCR34 Boost 2CR Fork Suntour Raidon R Rear Shock Shimano CUES 10 Speed Gears Tektro HD M535 Hydraulic Disc Brakes Specification Bike
Description
The Ghost Kato FS is built for riders who crave full suspension freedom. With a lightweight aluminium frame, efficient 4 bar rear suspension platform, it smooths out rough trails and powers through the climbs with ease. For control, comfort and fun on every ride - choose the Kato FS.
- Alloy Frame
- Suntour XCR34 Boost 2CR Fork
- Suntour Raidon R Rear Shock
- Shimano CUES 10 Speed Gears
- Tektro HD-M535 Hydraulic Disc Brakes
Specification
Bike Geometry
-
Bottom bracket drop [mm]:
- · 21.6 mm
- · 36.2 mm
-
Chain stay length [mm]:
- · 430 mm
- · 450 mm
- Head tube angle: 66 degrees
-
Head tube length [mm]:
- · 110 mm
- · 120 mm
- · 135 mm
- · 160 mm
-
Reach [mm]:
- · 415 mm
- · 451 mm
- · 463 mm
- · 494 mm
- · 521 mm
-
Stack [mm]:
- · 587 mm
- · 625 mm
- · 639 mm
- · 662 mm
-
Stand over height [mm]:
- · 698 mm
- · 700 mm
- · 715 mm
- · 726 mm
- · 744 mm
- Seat tube angle: 77 degrees
-
Seat tube length [mm]:
- · 385 mm
- · 395 mm
- · 415 mm
- · 435 mm
- · 465 mm
-
Top tube length [mm]:
- · 550 mm
- · 586 mm
- · 606 mm
- · 641 mm
- · 674 mm
-
Wheelbase [mm]:
- · 1145 mm
- · 1181 mm
- · 1231 mm
- · 1268 mm
- · 1305 mm
Brake system
- Brake Front Brand: Tektro
- Brake Front Kind: HD-M535, 4 pistons, resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Front Type: Hydraulic Disc brake
- Brake Rear Brand: Tektro
- Brake Rear Kind: HD-M535, 4 pistons, resin pad, 180 mm
- Brake Rear Mount: Post Mount
- Brake Rear Type: Hydraulic Disc brake
- Brake Lever Brand: Tektro
- Brake Lever Kind: HD-M535-BL
- Brake Rotor Brand: Tektro
- Brake Rotor Kind: TR180-35 180 mm, Centerlock
Drivetrain
- Bottom Bracket Brand: Shimano
- Bottom Bracket Kind: Deore SM-BB52 68/73 mm, HOLLOWTECH II
- Bottom Bracket Type: BSA
- Cassette Brand: Shimano
- Cassette Kind: CUES CS-LG300-10, HG
- Cassette Teeth: 11-48T
- Chain Brand: Shimano
- Chain Kind: CN-LG500 9-11s, LINKGLIDE
- Crank Arm length: 170
- Crankset Brand: Shimano
- Crankset Kind: CUES FC-U4000-1, Dynamic Chain Engagement+
- Crankset Teeth: 32T
- Crankset Type: single
- Derailleur Hanger Brand: Glory Wheel
- Derailleur Hanger Kind: UDH
- Derailleur Rear Brand: Shimano
- Derailleur Rear Kind: CUES RD-U6000 10/11s, Shadow+
- Gear Brand: Shimano
- Gear Type: Derailleur
- Pedal Brand: XLC
- Pedal Inclusive: Yes
- Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Shifter Right Brand: Shimano
- Shifter Right Kind: CUES SL-U6000-10R, Rapidfire+
- Shifter Right Type: Triggershift
Frame and more
-
Framesize:
- · 39 cm
- · 40 cm
- · 42 cm
- · 44 cm
- · 47 cm
-
Framesize Convection:
- · XS
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 120 kg
- Front Fork Brand: Suntour
- Front Fork Kind: XCR34-Boost AIR 2CR DS 15AH2-110 130 mm
- Front Fork Type: Suspension
- Frame Kind: HIGH
- Shock Brand: Suntour
- Shock Kind: Raidon R 210x50mm, Hardware: 30x8
- Type kickstand mount: KSA18
- Suspension Type: Fully
- Travel Front: 130 mm
- Travel Rear: 130 mm
Handlebar and Saddle
- Handgrip Brand: XLC
- Grip Kind: GR-S60 Sport Grip
- Handlebar Brand: XLC
- Handlebar Diameter: 31.8 mm
- Handlebar Kind: HB-M30, Dia. 31.8 mm, Backsweep: 9°
- Handlebar Material: Aluminium
- Handlebar Type: Flat bar
- Handlebar Width: 760 mm
- Headset Brand: Glory Wheel
- Headset Kind: Strummer Headset, 1SI11015Z ZS44/ZS56
- Headset Type: Semi-integrated
- Saddle Brand: XLC
- Saddle Kind: SA-S10 143 mm Sport
- Seatpost Brand: XLC
-
Seatpost Kind:
- · Dropper SP-T21, Dia. 31.6 mm, Travel: 125 mm
- · Dropper SP-T21, Dia. 31.6 mm, Travel: 150 mm
-
Seatpost Length:
- · 405 mm
- · 456 mm
- Seatpost Material: Aluminium
-
Seatpost Travel (mm):
- · 125 mm
- · 150 mm
- Seatpost Type: Dropperpost
- Stem Brand: XLC
- Stem Kind: ST-M50, Dia. 31.8 mm, L: 50 mm, A-Head
- Stem Length: 50 mm
Wheels and wheel components
- Hub Front Brand: XLC
- Hub Front Kind: HF-M15 Boost 15x110 mm, 32H, Centerlock
- Hub Rear Brand: XLC
- Hub Rear Kind: HR-M15 Boost 12x148 mm, 32H, Centerlock, HG
- Rim Brand: XLC
-
Rim Kind:
- · WR-M17 Disc 25/584 32H 6,5 mm Valve
- · WR-M19 Disc 25/622 32H 6,5 mm Valve
- Rim Rear Brand: XLC
-
Rim Rear Kind:
- · WR-M17 Disc 25/584 32H 6,5 mm Valve
- · WR-M19 Disc 25/622 32H 6,5 mm Valve
- Spoke Brand: DT Swiss
- Spoke Kind: FACTORY 2.0
- Tyre Brand: XLC
- Tyre Kind: VT-M20 Summit
- Tyre Rear Brand: XLC
- Tyre Rear Kind: VT-M20 Summit
-
Tyre Size Etrto:
- · 57-584
- · 57-622
-
Wheel Size Front:
- · 29
- · 27.5
-
Wheel Size Rear:
- · 29
- · 27.5
